Adjustable Bolt Hinges

Adjustable bolt hinges are designed with a unique feature that allows for gate adjustments to be made after the gate has been installed. This adjustability is achieved through a bolt that can be tightened or loosened to change the position of the gate that the hinge is attached to. This feature is useful in situations where the gate may sag over time due to wear and tear or changes in the surrounding structure.
The bolts below offer weld on applications as well as a hinge with a screw on bracket. These hinges can carry weight from 165 lbs. per pair up to 485 lbs. per pair.

Cad Drawing Spec Sheet

Hinge with long bolt and U-bracket to be welded

130-M18

3/16" thick mounting bracket M18 Bolt 7-3/16" Long Maximum Capacity 275 lbs

Cad Drawing Spec Sheet

Hinge with long bolt and U-bracket to be welded

130-M22

3/16" thick mounting bracket M22 Bolt 7-3/8" Long Maximum Capacity 485 lbs

Cad Drawing Spec Sheet

Hinge with wings to be welded and adjustable nut to be screwed on

160-M22

1/4" thick mounting bracket M10 Bolt, 2-7/8" high 2-3/4" - 3-3/4" Adjustability Maximum Capacity 485 lbs

Cad Drawing Spec Sheet

Hinge with wings to be welded and back plate with adjustable nut to be screwed on

163-M22

3/16" thick mounting bracket M22 Bolt, 4" high 2-3/8" - 3-5/16" Adjustability Capacity 485 lbs per pair

Cad Drawing Spec Sheet

Adjustable hinge with wings and back plate to be welded for 180° opening

178-M16

5/16" thick back plate R1: 1-1/2" -4" R2: 2" - 2-3/4" Capacity 165 lbs per pair

Cad Drawing Spec Sheet

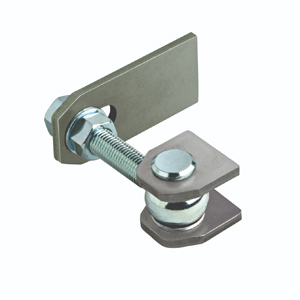

Adjustable hinge with wings and back plate to be welded for 180° opening

178-M24

1/2" thick back plate R1: 2-3/4" -4-3/4" R2: 3-3/8" - 4-1/4" Capacity 440 lbs per pair
