We have a quality issue with item H810.

The profile for flat bar/channel is not clearly defined. Flat bar / channel will not be completely level when placed inside.

Steel Half Oval Handrail Molding:
2-1/8" wide x 3/4" high
sold in 19'8" lengths

One of our customer service representatives will contact you in regards to shipping your item.

In order to ship UPS, bar must be cut to no more than 7'9" feet. There is a $5.00 per cut charge.

The shipping charges calculated at time of checkout will vary due to weight and box size.

Steel volute for half oval handrail item H810.

Y = 5.33"

X = 2.5"

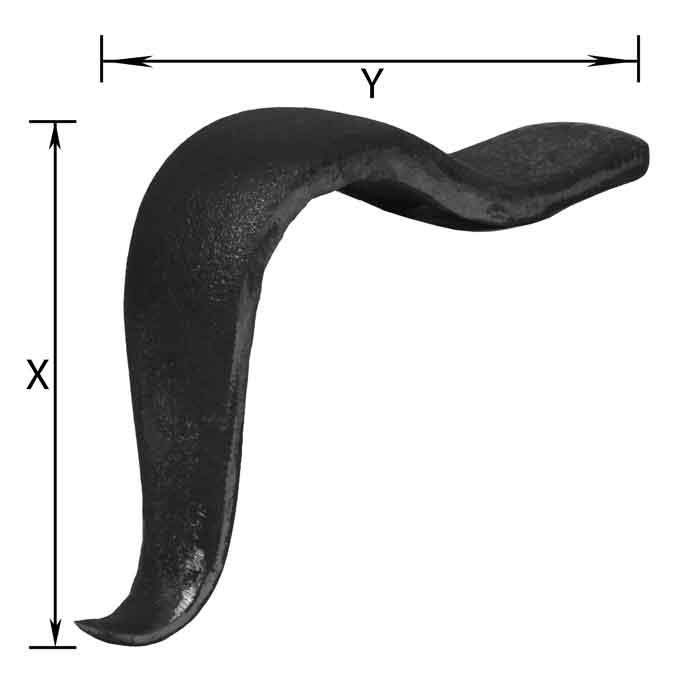

Beveled lamb's tongue for 2-1/8" half oval steel handrail molding.
X= 5-1/2"
Y= 8-3/8"

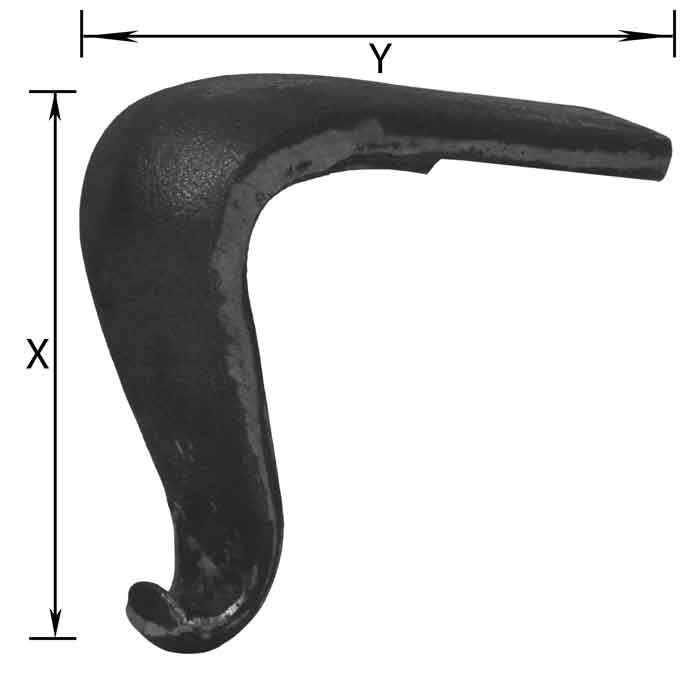

Straight lamb's tongue for 2-1/8" half oval steel handrail molding.
X= 5-1/2"
Y= 6-1/2"

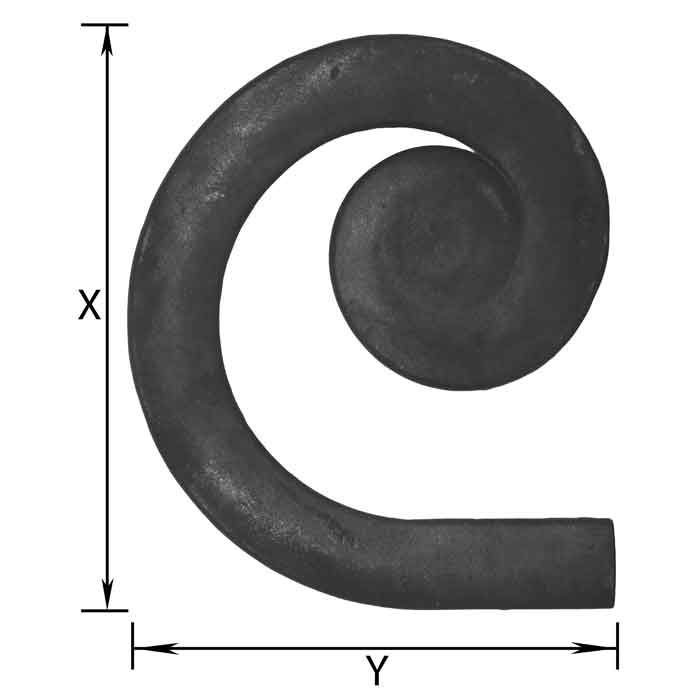

Left Senior Lateral Scroll for 2-1/8" half oval steel handrail molding.
X= 13"
Y= 11"

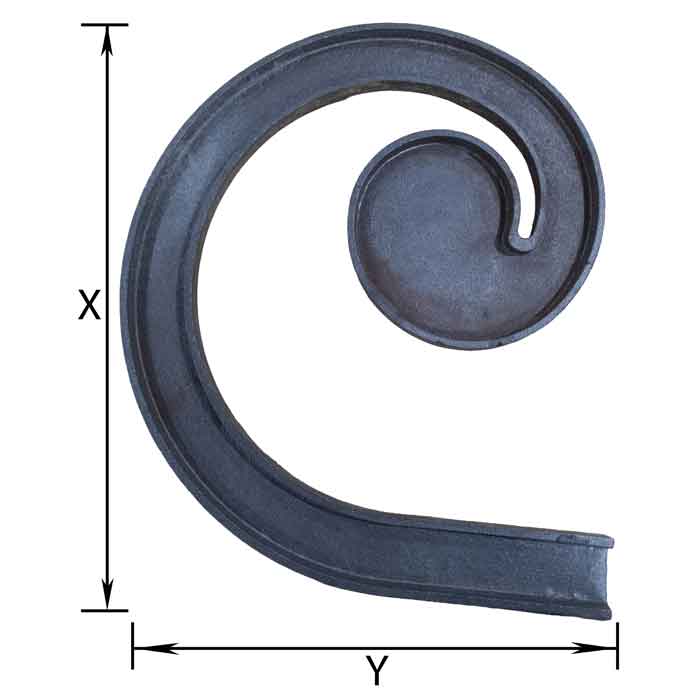

Left Senior Lateral Channel for 2-1/8" half oval steel handrail molding.
X= 12-1/2"
Y= 10-3/4"

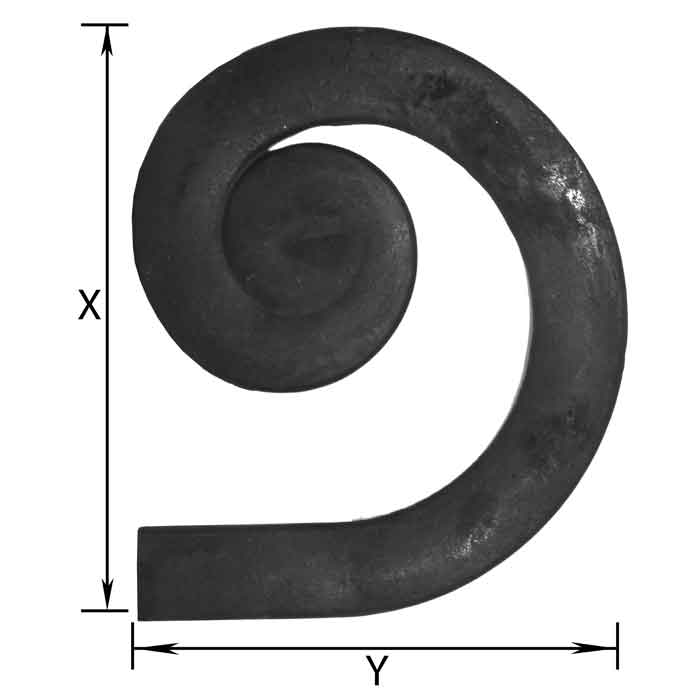

Right Senior Lateral Scroll for 2-1/8" half oval steel handrail molding.
X= 13"
Y= 11"

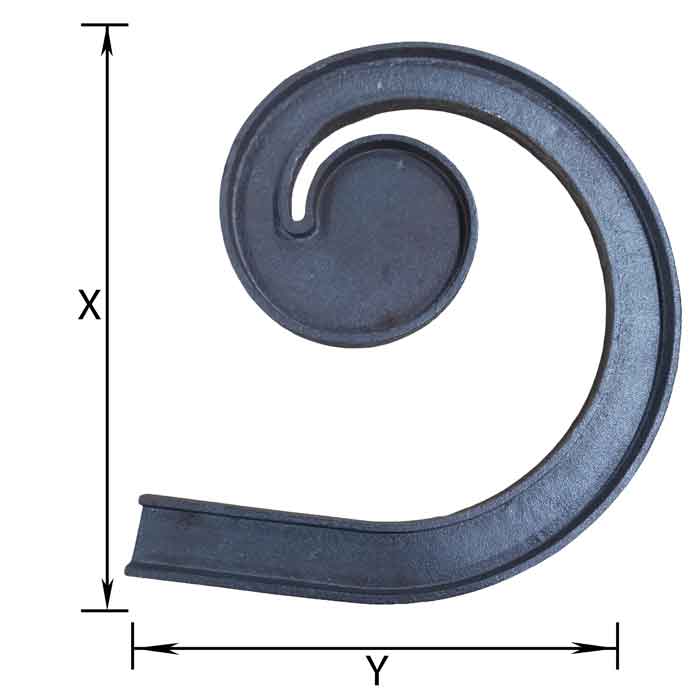

Right Senior Lateral Channel for 2-1/8" half oval steel handrail molding.
X= 12-1/2"
Y= 10-3/4"

Steel terminal end for half oval handrail item H810.

Y = 2.125"

X = 3.5"

Steel corner bend for half oval handrail item H810.

Y = 6"

X = 6"

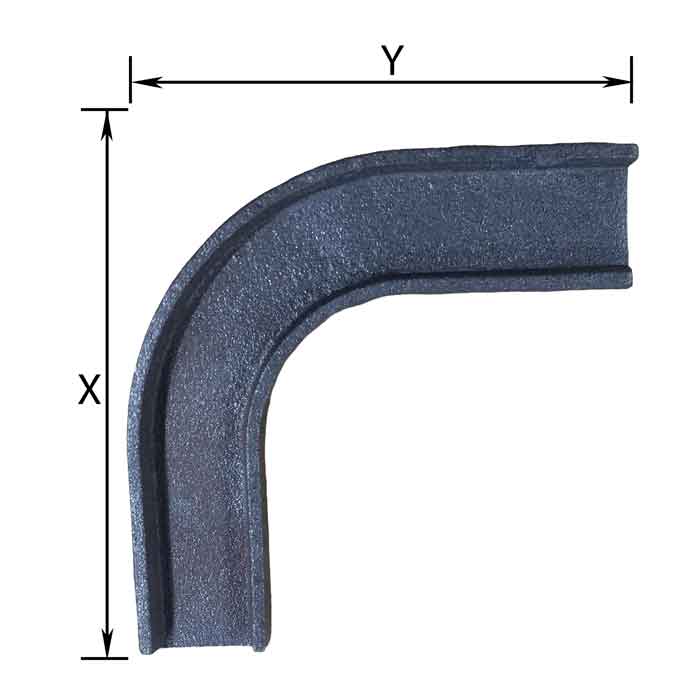

Steel Channel for Corner Bend for the 2-1/8" half oval steel handrail molding.
X= 5-3/4"
Y= 5-3/4"

Steel terminal end with finial mounting area for half oval handrail item H810.

Y = 4.3"

X = 2.8"

Steel 90° corner piece with finial mounting area for half oval handrail item H810.

Y = 4.3"

X = 4.3"

Steel handrail center piece with finial mounting area for half oval handrail item H810.

Y = 5.7"
