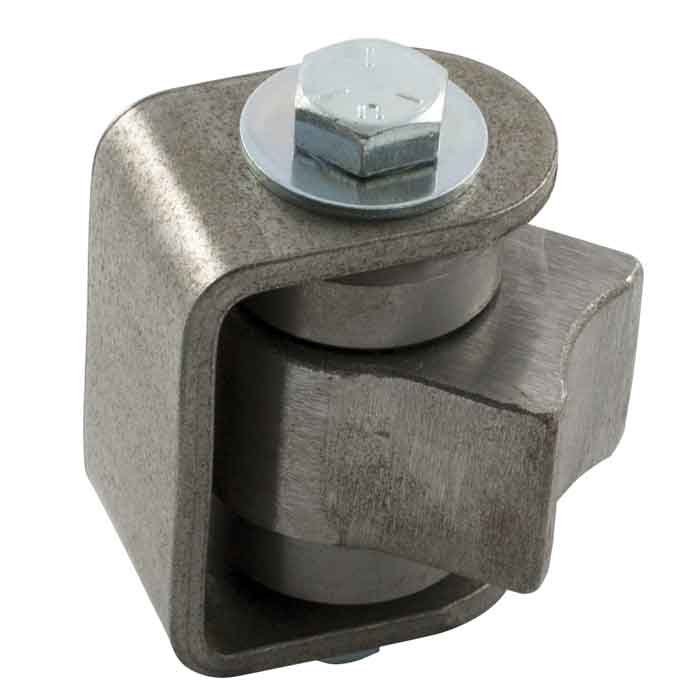

The Rusted Look Original BadAss gate hinge is designed to blend in on fences with a rust patina. No zinc plating except on shaft, washer and lock nut. Due to SHUT IT’s unique bushing design The Rusted Look Original, like all other SHUT IT gate hinges, produces near frictionless movement with maintenance free usage.
KEY FEATURES
Two sealed maintenance free bearings (no greasing)
Adjustable yoke for perfect installations
Ideal for both flat and round post installations
Load rating per gate: 2,000 lbs (900kg)
Maximum gate weight: 1,100 lbs (500kg)
Hinges are sold individually.
SKU | Gap Variance Inch/mm |
Fixing |
Finish | # of Sealed Bearings |
Yoke Mat'l |
Body Mat'l |
Height Inch/mm |
Weight lbs/kg |
CI3100 | 2.4-2.9" (61-74mm) |
Weld | Unfinished | 2 | Steel | Steel | 3.8" (97mm) |
2.5 lbs (1.1kg) |
SKU | CI3100 |
---|---|
Weight | 2.500000 |
Brands | D&D Technologies |
Gate and Fence Material | Steel |
Material of Hinge | Steel |
MFG Specified Non-Self Closing Weight Capacity per Pair | Greater than 1000lbs |
Style of Hinge | Roller Bearing Hinge |
Installation Type | Center Mount |
Fastening Method | Weld-On |
Gate/Post Profile | Square Post, Square Gate Frame |
Trade name | Shut-It |
