            The shipping charges - for Long Bars/Material - calculated at time of checkout will vary due to weight and box size.

            NOTE: Most product dimensions are approximate within manufacturing tolerances and in many cases are a close approximation after converting from metric.





main product photo

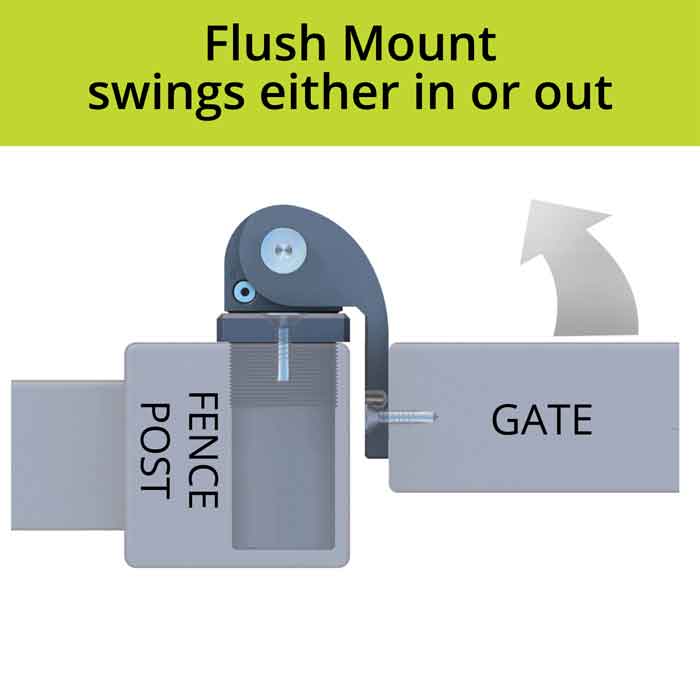

SureClose Flush Mount Hinges and Hinges/Closers for Steel Gates (Weld-on)

Item Number
57 AT90 W, 57SF AT90 W, 108 AT90 W, 108SF AT90 W
Grouped product items

57 AT90 W/Self Closing Flush Mount Hinge (Weld-On)

When two 57 AT90 W hinges are used in combination the weight capacity of the gate can be up to 180 lbs. (This is based on a max gate size of 72" high x 40" wide)



Hinge gap: 1/2"

Minimum fence post size: 2" +

Self closing from: 85°

Max gate swing: 180°

Item Number : 75057214

PRICE :

$270.00

QTY :

57SF AT90 W/Self Closing Flush Mount Hinge (Weld-On) for Pool Safety

When two 57SF AT90 W hinges are used in combination the weight capacity of the gate can be up to 180 lbs. (This is based on a max gate size of 72" high x 40" wide)



Hinge gap: 1/2"

Minimum fence post size: 2" +

Self closing from: 90°

Max gate swing: 90°

Pool/child safety: Yes

Item Number : 75057224

PRICE :

$267.30

QTY :

108 AT90 W/Self Closing Flush Mount Hinge (Weld-On) Final Snap Action

When two 108 AT90 W hinges are used in combination the weight capacity of the gate can be up to 260 lbs. (This is based on a max gate size of 72" high x 40" wide)



Hinge gap: 1/2"

Minimum fence post size: 3" +

Self closing from: 85°

Max gate swing: 180°

Final snap action: Yes

Item Number : 75108214

PRICE :

$344.60

QTY :

108SF AT90 W/Self Closing Flush Mount Hinge (Weld-On) Final Snap Action for Pool Safety

When two 108SF AT90 W hinges are used in combination the weight capacity of the gate can be up to 260 lbs. (This is based on a max gate size of 72" high x 40" wide)



Hinge gap: 1/2"

Minimum fence post size: 3" +

Self closing from: 90°

Max gate swing: 90°

Final snap action: Yes

Pool/child safety: Yes

Item Number : 75108224

PRICE :

$351.70

QTY :

Flush Mount Weld-on Steel Bracket

This post mounting bracket is to be used with the SureClose Flush Mount Weld-on Hinges.

Max Gate Swing: 180°
Horizontal adjustment: No
Hinge Gap: 1/2"
Minimum Fence Post Size: 2-1/2" +

Item Number : 7525

PRICE :

$30.60

QTY :

Wish List Compare

Share it:

Item Summary

Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing.

The SureClose® SM hinge was designed for large style gates, such as heavy commercial and residential, plus estate gates and gates with access control. The SM model features extra-large hinge pins and dual thrust bearings designed for high loads.

Save money when SM is used as the bottom, load-bearing hinge along with a SureClose® 57 or SureClose® 108 closer. All SureClose® hinges and closers come packaged with the gate mounting bracket included.

Post mount bracket sold separately. Choose from item 7525.

Internally Mounted, Hydraulic, Gate Hinge-Closers
• Non-safety models - open to 180°, self-close from 85°
• Maintenance free, with high corrosion resistance
• Screw-on or weld-on models available
• Multiple adjustment options
• Self-closes gates up to 260 lb (120kg) – See Chart
• Non-self-closing models available
• Prevents gate slam noise & gate damage
• 50-micron anodizing (aluminum components)
• Proprietary finish – no need to grind before welding!
• Mounting brackets sold separately
• 5 Year Warranty*

More Information
SKU 57 AT90 W, 57SF AT90 W, 108 AT90 W, 108SF AT90 W
Brands D&D Technologies
Gate and Fence Material Steel
MFG Specified Self Closing Weight Capacity per Pair Up to 300lbs
Fastening Method Weld-On
Installation Type Surface Mount
Material of Hinge Steel
Gate/Post Profile Square Post, Square Gate Frame
Color/Finish Black
Trade name SureClose
