            The shipping charges - for Long Bars/Material - calculated at time of checkout will vary due to weight and box size.

            NOTE: Most product dimensions are approximate within manufacturing tolerances and in many cases are a close approximation after converting from metric.





main product photo

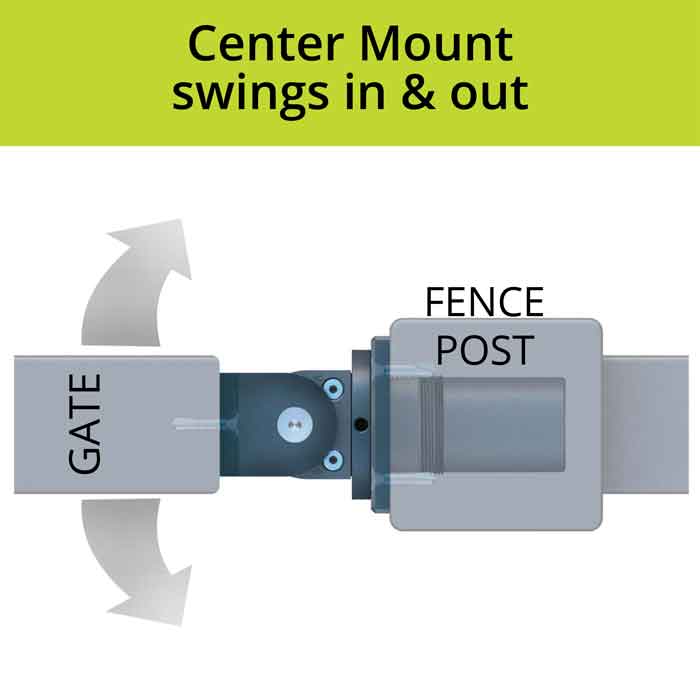

SureClose Center Mount Hinges and Hinges/Closers for Aluminum Gates (Screw-on)

Item Number
57 S, 57SF S, 108 S, 108SF S
Grouped product items

57 S/Self Closing Center Mount Hinge (Screw-On)

When two 57 S hinges are used in combination the weight capacity of the gate can be up to 180 lbs. (This is based on a max gate size of 72" high x 40" wide)



Hinge gap: 2-1/2"-3"

Minimum fence post size: 2-1/2" +

Self closing from: 85°

Max. gate swing: 90°

Item Number : 75057113

PRICE :

$238.40

QTY :

57SF S/Self Closing Center Mount Hinge (Screw-On) for Pool Safety

When two 57SF S hinges are used in combination the weight capacity of the gate can be up to 180 lbs. (This is based on a max gate size of 72" high x 40" wide)



Hinge gap: 2-1/2"-3"

Minimum fence post size: 2-1/2" +

Self-closing from 90°

Max. gate swing 90°

Can be used for Pool/Child Safety Gates

Item Number : 75057123

PRICE :

$235.70

QTY :

108 S/Self Closing Center Mount Hinge (Screw-On) Final Snap Action

When two 108 S hinges are used in combination the weight capacity of the gate can be up to 260 lbs. (This is based on a max gate size of 72" high x 40" wide)



Hinge gap: 2-1/2"-3"

Minimum fence post size: 3" +

Self closing from: 85°

Max gate swing: 90°

Final snap action: Yes

Pool/child safety: No

Item Number : 75108113

PRICE :

$313.00

QTY :

108SF S/Self Closing Center Mount Hinge (Screw-On) Final Snap Action for Pool Safety

When two 108SF S hinges are used in combination the weight capacity of the gate can be up to 260 lbs. (This is based on a max gate size of 72" high x 40" wide)



Hinge gap: 2-1/2"-3"

Minimum fence post size: 3" +

Self closing from: 90°

Max gate swing: 90°

Final snap action: Yes

Pool/child safety: Yes

Item Number : 75108123

PRICE :

$320.10

QTY :

Center Mount Screw-on Aluminum Bracket

This post mounting bracket is to be used with the SureClose Center Mount Hinges.

Max Gate Swing: 90°
Horizontal adjustment: Yes
Hinge Gap: 2-1/2" to 3"
Minimum Fence Post Size: 2-1/2" +

Item Number : 7512

PRICE :

$45.20

QTY :

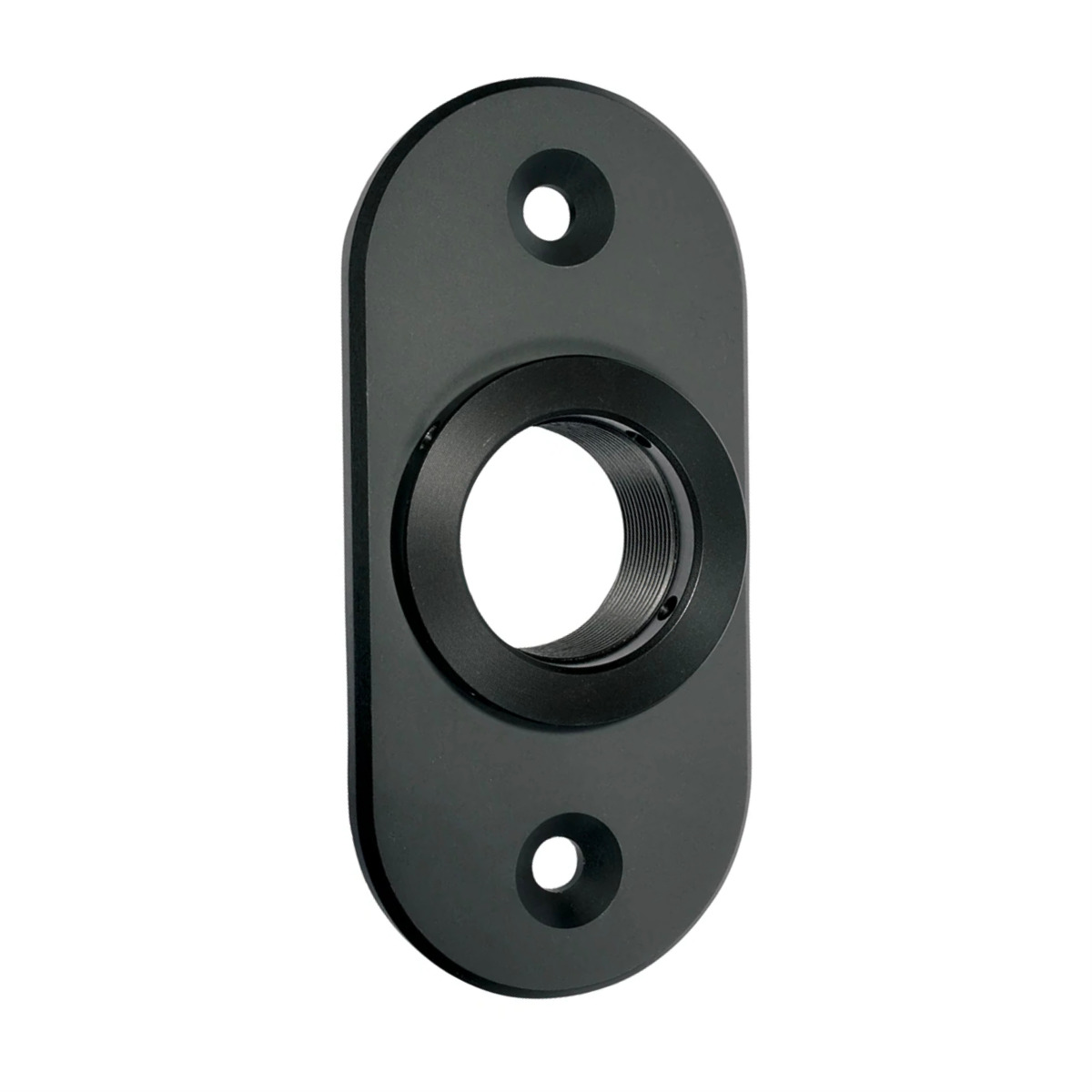

Center Mount Screw-on Aluminum Bracket

This post mounting bracket is to be used with the SureClose Center Mount Hinges.

Max Gate Swing: 90°
Horizontal adjustment: Yes
Hinge Gap: 2-1/2" to 3"
Minimum Fence Post Size: 2-1/2" +

Item Number : 7511

PRICE :

$46.40

QTY :

Wish List Compare

Share it:

Item Summary

Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing.

The SureClose® SM hinge was designed for large style gates, such as heavy commercial and residential, plus estate gates and gates with access control. The SM model features extra-large hinge pins and dual thrust bearings designed for high loads.

Save money when SM is used as the bottom, load-bearing hinge along with a SureClose® 57 or SureClose® 108 closer. All SureClose® hinges and closers come packaged with the gate mounting bracket included.

Post mounting brackets sold separately. Choose from items 7512 and 7511.

Internally Mounted, Hydraulic, Gate Hinge-Closers
• Non-safety models - open to 180°, self-close from 85°
• Maintenance free, with high corrosion resistance
• Screw-on or weld-on models available
• Multiple adjustment options
• Self-closes gates up to 260 lb (120kg) – See Chart
• Non-self-closing models available
• Prevents gate slam noise & gate damage
• 50-micron anodizing (aluminum components)
• Proprietary finish – no need to grind before welding!
• Mounting brackets sold separately
• 5 Year Warranty*

More Information
SKU 57 S, 57SF S, 108 S, 108SF S
Brands D&D Technologies
Gate and Fence Material Aluminum, Steel
MFG Specified Self Closing Weight Capacity per Pair Up to 300lbs
Fastening Method Bolt-On
Installation Type Center Mount
Material of Hinge Steel
Gate/Post Profile Square Post, Square Gate Frame
Color/Finish Black
Trade name SureClose
