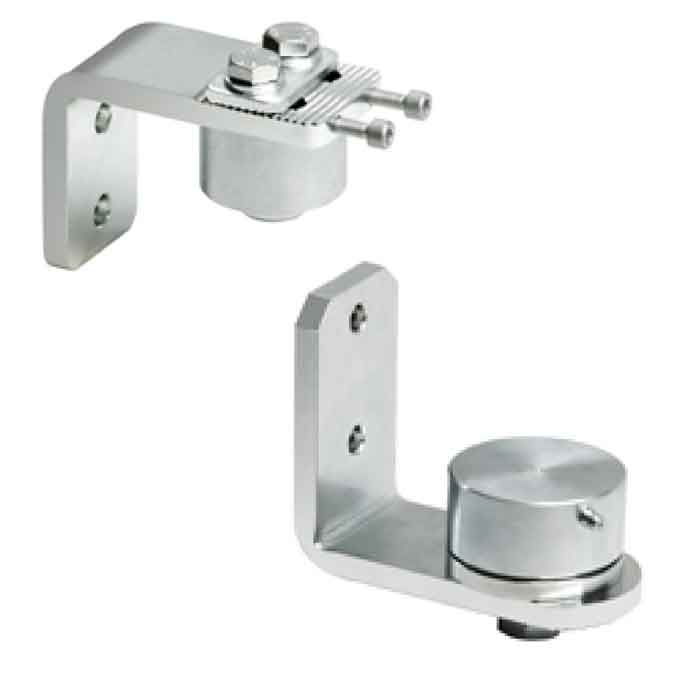

Upper & Bottom Hinge (Bolt-on/Weld-on) Combinations for Gates up to 770 lbs.

Item Number

85L-M and 87L-M

Grouped product items

Adjustable Upper Hinge, Screw On, 2" dia., 770 lbs. per pair, Galvanized, Sold Individually This upper gate hinge is galvanized and to be used with the bottom hinge, item 87L-M. As a pair, these hinges can carry a load of 770 lbs. Sold individually Item Number : 85L-M PRICE : $63.40 QTY :
Adjustable Bottom Hinge w/Thrust Bearing, Screw On, 2" dia., 770 lbs. per pair, Galvanized, Sold Individually This bottom hinge is galvanized and to be used with the top hinge, item 85L-M. As a pair, these hinges can carry a load of 770 lbs. Sold individually. Item Number : 87L-M PRICE : $71.20 QTY :

Adjustable upper hinge with L-Bracket to be screwed on and sealed bearings

85L-M
3/8" thick mounting bracket
2" Hinge diameter
2-1/4" - 3-3/8" Adjustability

Adjustable bottom hinge with L-Bracket to be screwed on and sealed bearings

87L-M
3/8" thick mounting bracket
2" Hinge diameter
2-3/16" - 3-3/8" Adjustability

As a pair, these hinges can carry a load of 770 lbs.

Sold individually.

More Information

More Information
SKU	85L-M and 87L-M
Brands	Comunello
Gate and Fence Material	Steel
Material of Hinge	Steel
MFG Specified Non-Self Closing Weight Capacity per Pair	Up to 1000lbs
Style of Hinge	Upper/Bottom Hinge Combo
Installation Type	Center Mount
Fastening Method	Bolt-On/Weld-On
Gate/Post Profile	Square Post, Square Gate Frame

Spec Sheet for item 85L (Size: 3.7 MB)

Spec Sheet for Item 87L (Size: 746.2 KB)
