Upper & Bottom Hinge (Bolt-on/Weld-on) Combinations for Gates up to 1100 lbs.

Item Number

85PST-G and 87PST-G

Grouped product items

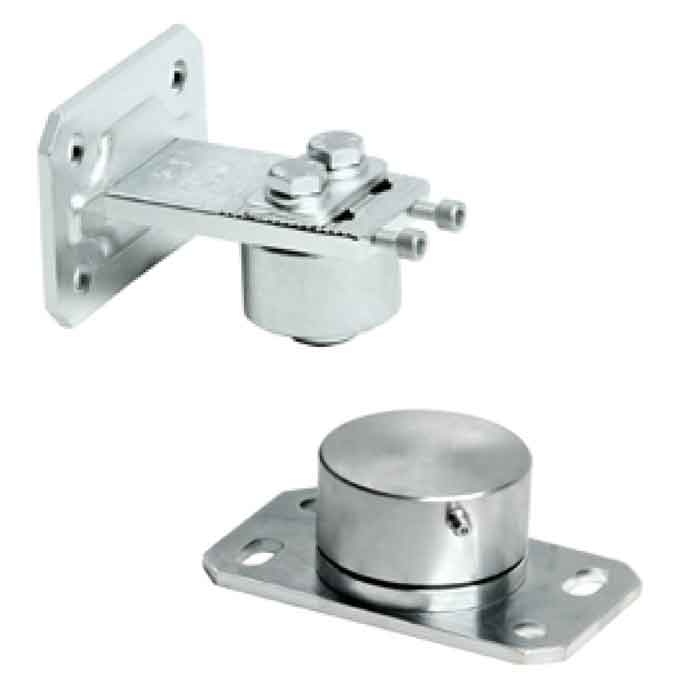

Adjustable Upper Hinge, Screw On, 2-11/16" dia, 4 hole, 1100 lbs. per pair, Galvanized, Sold Individually This upper gate hinge is galvanized and to be used with the bottom hinge, item 87PST-G. As a pair, these hinges can carry a load of 1100 lbs. Sold individually Item Number : 85PST-G PRICE : $74.40 QTY :
Bottom hinge w/Thrust Bearing, Screw On, 2-11/16" dia., 1100 lbs. per pair, Galvanized, Sold Individually This bottom hinge is galvanized and to be used with the top hinge, item 85PST-G. As a pair, these hinges can carry a load of 1100 lbs. Sold individually Item Number : 87PST-G PRICE : $60.20 QTY :

Adjustable upper hinge with plate to be screwed on and sealed bearings

85PST-G
3/8" thick mounting bracket
2-11/16" Hinge diameter
3-1/2" - 4-1/16" Adjustability

Bottom hinge with thrust bearing and plate to be screwed on and sealed bearings

87PST-G
3/16" thick mounting plate
2-11/16" Hinge diameter

As a pair, these hinges can carry a load of 1100 lbs.

Sold individually.

More Information

More Information
SKU	85PST-G and 87PST-G
Brands	Comunello
Gate and Fence Material	Steel
Material of Hinge	Steel
MFG Specified Non-Self Closing Weight Capacity per Pair	Greater than 1000lbs
Style of Hinge	Upper/Bottom Hinge Combo
Installation Type	Center Mount
Fastening Method	Bolt-On/Weld-On
Gate/Post Profile	Square Post, Square Gate Frame

Spec sheet for item 87PST (Size: 5.4 MB)

Adjustable Upper Hinge, Screw On, 2-11/16" dia, 4 hole, 1100 lbs. per pair, Galvanized, Sold Individually
