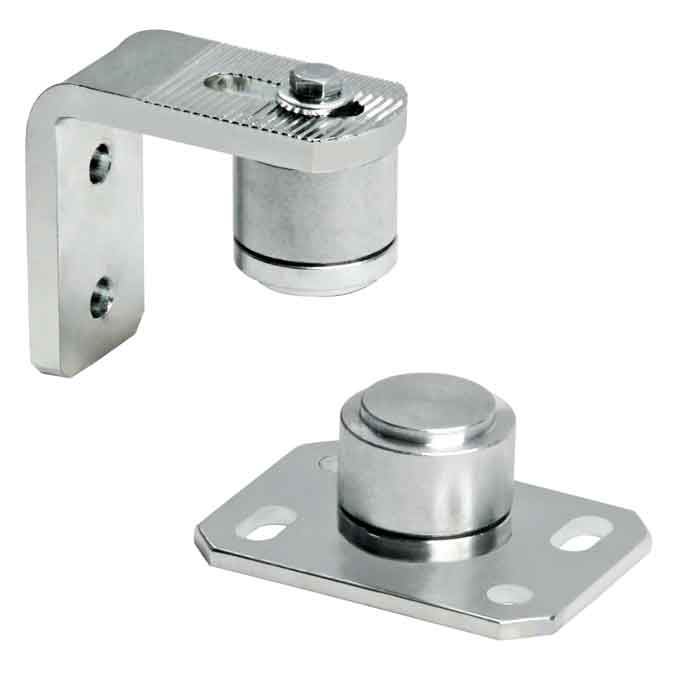

Upper & Bottom Hinge (Bolt-on/Weld-on) Combinations for Gates up to 440 lbs.

Item Number

86L-P and 87PST-P

Grouped product items

Upper Hinge, Screw On, 1-3/4" dia., 440 lbs. per pair, Galvanized, Sold Individually The Comunello Professional line of hinges covers all needs and types of gates, both single and double leaf, depending on the application. All hinges are galvanized for a more durable product. Measurements: Hinge height: 3-3/4" Hinge width: 4" Sold Individually Item Number : 86L-P PRICE : $49.90 QTY :
Bottom Hinge w/Thrust Bearing, Screw On, 1-3/4" dia., 440 lbs. per pair, Galvanized, Sold Individually The Comunello Professional line of hinges covers all needs and types of gates, both single and double leaf, depending on the application. All hinges are galvanized for a more durable product. Measurements: Height of bearing: 1-1/2" Diameter of bearing: 1-3/4" Sold Individually Item Number : 87PST-P PRICE : $41.40 QTY :

Adjustable upper hinge with L-Bracket to be screwed on and sealed bearings

86L-P
3/8" thick mounting bracket
1-3/4" Hinge diameter
2" - 3-5/16" Adjustability

Bottom hinge with thrust bearing and plate to be screwed on and sealed bearings

87PST-P
3/16" thick mounting plate
1-3/4" Hinge diameter

As a pair, these hinges can carry a load of 440 lbs.

Sold individually.

More Information

More Information
SKU	86L-P and 87PST-P
Brands	Comunello
Gate and Fence Material	Glass
Material of Hinge	Steel
MFG Specified Non-Self Closing Weight Capacity per Pair	Up to 500lbs
Style of Hinge	Upper/Bottom Hinge Combo
Installation Type	Center Mount
Fastening Method	Bolt-On/Weld-On
Gate/Post Profile	Square Post, Square Gate Frame

Spec sheet for item 87PST (Size: 5.4 MB)

Upper Hinge, Screw On, 1-3/4" dia., 440 lbs. per pair, Galvanized, Sold Individually
