The shipping charges - for Long Bars/Material - calculated at time of checkout will vary due to weight and box size.

            NOTE: Most product dimensions are approximate within manufacturing tolerances and in many cases are a close approximation after converting from metric.

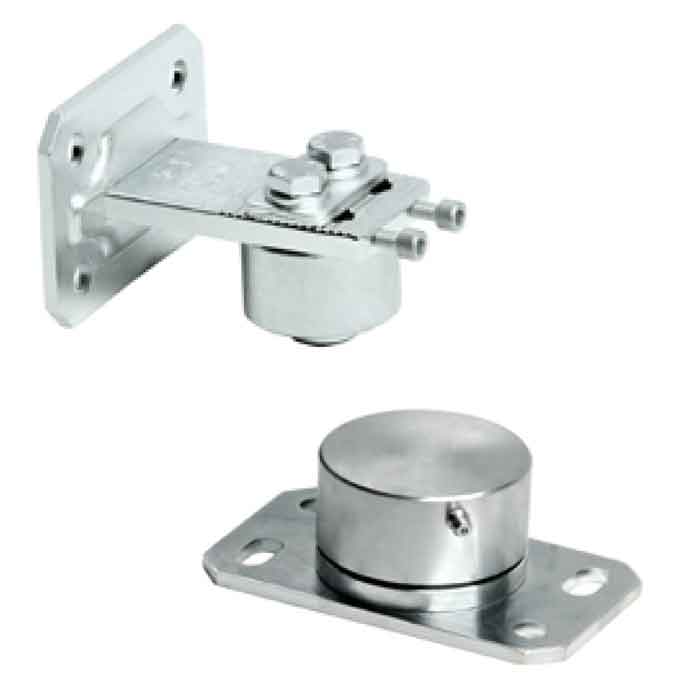

Upper & Bottom Hinge (Bolt-on/Weld-on) Combinations for Gates up to 700 lbs.

Item Number
85PST-M and 87PST-M
Grouped product items

Adjustable Upper Hinge, Screw On, 1-7/8" dia, 4 hole, 770 lbs. per pair, Galvanized, Sold Individually

This upper gate hinge is galvanized and to be used with the bottom hinge, item 87PST-M.

As a pair, these hinges can carry a load of 770 lbs.

Sold individually

Item Number : 85PST-M

PRICE :

$64.60

QTY :

Bottom hinge w/Thrust Bearing, Screw On, 1-15/16" dia., 770 lbs. per pair, Galvanized, Sold Individually

This bottom hinge is galvanized and to be used with the top hinge, item 85PST-M.

As a pair, these hinges can carry a load of 770 lbs.

Sold individually

Item Number : 87PST-M

PRICE :

$53.30

QTY :

Item Summary

Adjustable upper hinge with plate to be screwed on and sealed bearings

85PST-M
3/8" thick mounting bracket
2" Hinge diameter
2-1/4" - 3-3/8" Adjustability

Bottom hinge with thrust bearing and plate to be screwed on and sealed bearings

87PST-M
3/16" thick mounting plate
2" Hinge diameter

As a pair, these hinges can carry a load of 700 lbs.

Sold individually.

More Information
SKU 85PST-M and 87PST-M
Brands Comunello
Gate and Fence Material Steel
Material of Hinge Steel
MFG Specified Non-Self Closing Weight Capacity per Pair Up to 750lbs
Style of Hinge Upper/Bottom Hinge Combo
Installation Type Center Mount
Fastening Method Bolt-On/Weld-On
Gate/Post Profile Square Post, Square Gate Frame
