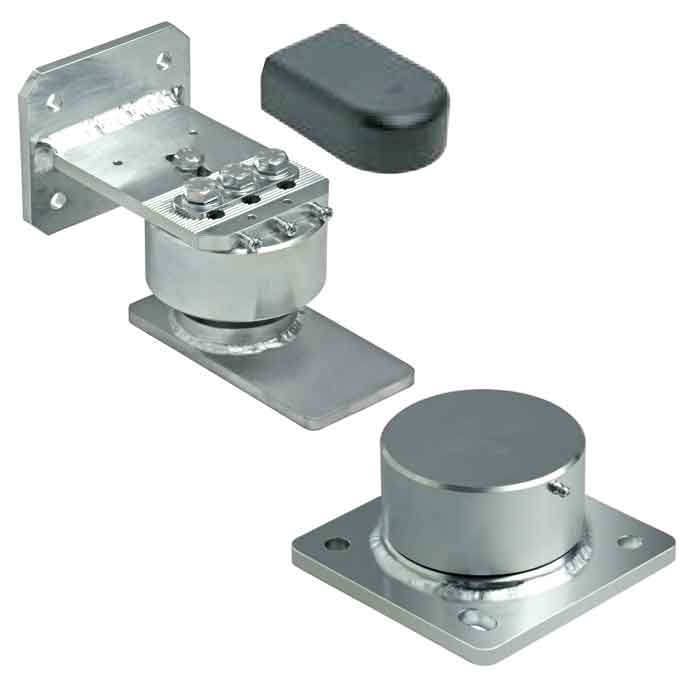

Upper & Bottom Hinge (Bolt-on/Weld-on) Combinations for Gates up to 8800 lbs.

Item Number

85XL and 87XL

Grouped product items

Adjustable Upper Hinge, Screw On, 5" dia., 8800 lbs. per pair, Galvanized, Sold Individually This upper gate hinge is galvanized and to be used with the bottom hinge, item 87XL. As a pair, these hinges can carry a load of 8800 lbs. Sold individually Item Number : 85XL PRICE : $369.40 QTY :
Bottom Hinge w/Thrust Bearing, Screw On, 4-1/4" dia., 8800 lbs. per pair, Galvanized, Sold Individually This bottom hinge is galvanized and to be used with the top hinge, item 85XL. As a pair, these hinges can carry a load of 8800 lbs. Sold individually Item Number : 87XL PRICE : $319.50 QTY :

Double adjustable heavy duty upper hinge with sealed bearings and plate to be screwed on

85XL
1/2" thick mounting bracket
5" Hinge diameter
5-3/16" - 6-1/2" Adjustability
Suppllied with cover

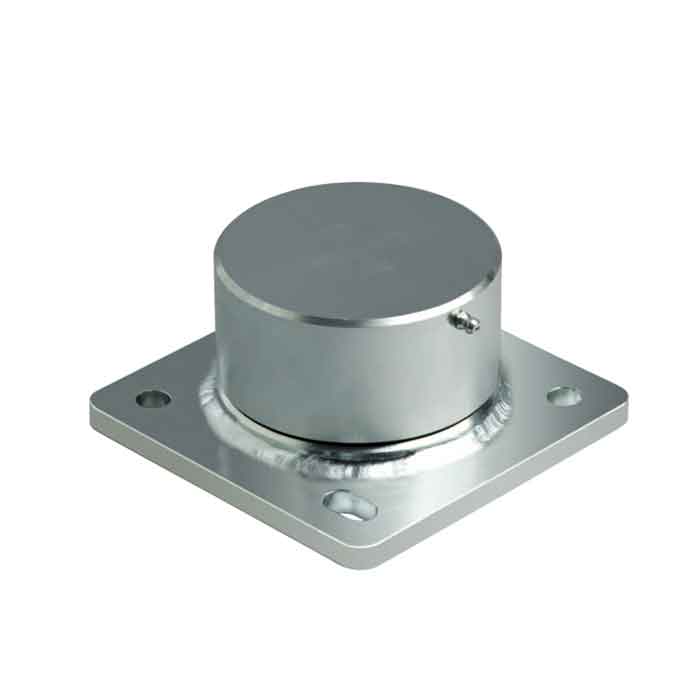

Heavy duty bottom hinge with thrust bearing and plate to be screwed on

87XL
1/2" thick mounting plate
4-1/4" Hinge diameter

As a pair, these hinges can carry a load of 8800 lbs.

Sold individually.

More Information

More Information
SKU	85XL and 87XL
Brands	Comunello
Gate and Fence Material	Steel
Material of Hinge	Steel
MFG Specified Non-Self Closing Weight Capacity per Pair	Greater than 1000lbs
Style of Hinge	Upper/Bottom Hinge Combo
Installation Type	Center Mount
Fastening Method	Bolt-On/Weld-On
Gate/Post Profile	Square Post, Square Gate Frame

Spec sheet for item 85XL (Size: 1.1 MB)

Adjustable Upper Hinge, Screw On, 5" dia., 8800 lbs. per pair, Galvanized, Sold Individually
