Upper & Bottom Weld-on Hinge Combinations for Gates up to 990 lbs.

Item Number

85M and 87M

Grouped product items

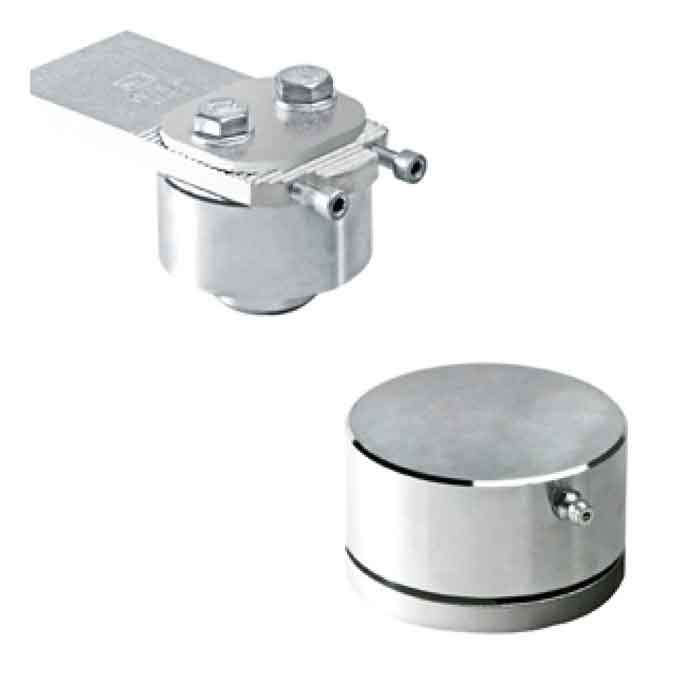

Adjustable Upper Hinge, Weld On, 1-3/16" dia., 990 lbs. per pair, Galvanized, Sold Individually This upper gate hinge is galvanized and to be used with the bottom hinge, item 87M. As a pair, these hinges can carry a load of 990 lbs. Sold individually. Item Number : 85M PRICE : $52.90 QTY :
Bottom Hinge w/Thrust Bearing, Weld On, 2" dia., 990lbs. per pair, Galvanized, Sold Individually This bottom hinge is galvanized and to be used with the top hinge, item 85M. As a pair, these hinges can carry a load of 990 lbs. Sold individually Item Number : 87M PRICE : $41.00 QTY :

Adjustable upper hinge with sealed bearings and a plate to be welded

85M
3/8" thick mounting bracket
2" Hinge diameter
2-1/4" - 3-3/8" Adjustability

Bottom hinge with thrust bearing to be welded

87M
2" Hinge diameter

As a pair, these hinges can carry a load of 990 lbs.

Sold individually.

More Information

More Information
SKU	85M and 87M
Brands	Comunello
Gate and Fence Material	Steel
Material of Hinge	Steel
MFG Specified Non-Self Closing Weight Capacity per Pair	Up to 1000lbs
Style of Hinge	Upper/Bottom Hinge Combo
Installation Type	Center Mount
Fastening Method	Weld-On
Gate/Post Profile	Square Post, Square Gate Frame

Spec sheet for item 85 (Size: 600.7 KB)

Adjustable Upper Hinge, Weld On, 1-3/16" dia., 990 lbs. per pair, Galvanized, Sold Individually
